HKS Bolt-on turbo kit GR86 BRZ 11001-AT011
HKS Bolt-on turbo kit GR86 BRZ 11001-AT011 - Image 2
HKS Bolt-on turbo kit GR86 BRZ 11001-AT011 - Image 3
HKS Bolt-on turbo kit GR86 BRZ 11001-AT011 - Image 4
HKS Bolt-on turbo kit GR86 BRZ 11001-AT011 - Image 5
HKS Bolt-on turbo kit GR86 BRZ 11001-AT011 - Image 6

HKS Bolt-on turbo kit GR86 BRZ 11001-AT011

JPY 902,000

Please contact us for availability.

SKU: 11001-AT011Categories:

Additional information

Manufacture

Position

Parts Category

Make

,

Model

,

Type

,





 1

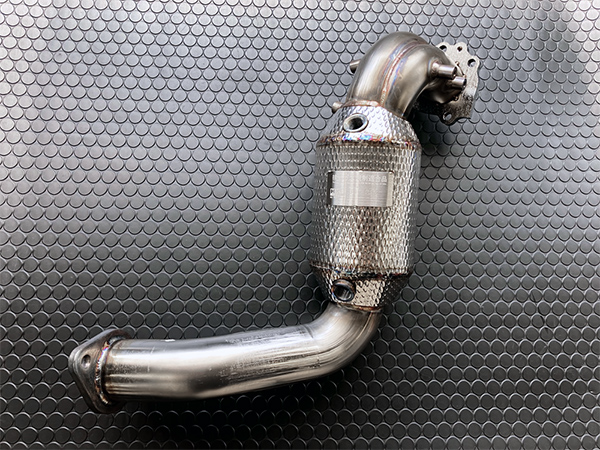

EXTENTION PIPE WITH METAL CATALYZER (D100 x L100)

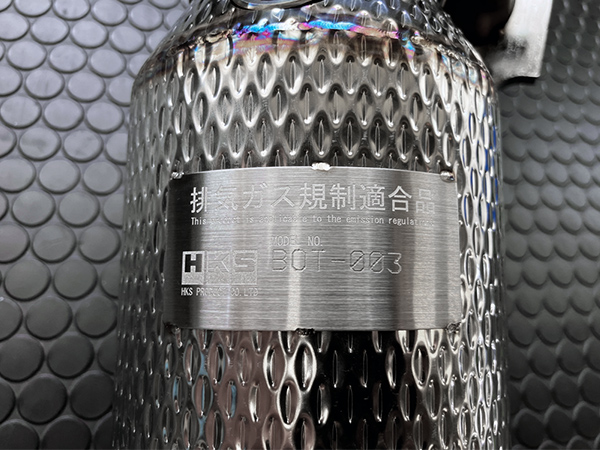

Bolt-on turbo exclusive Exhaust gas test certificate included

 2

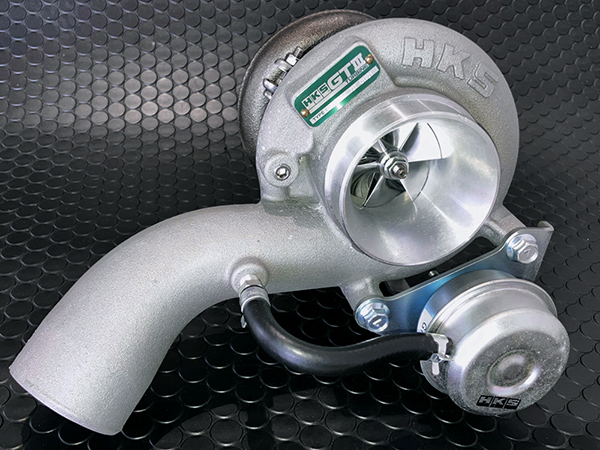

GTIII-RS Turbine (GR86/BRZ only)

3

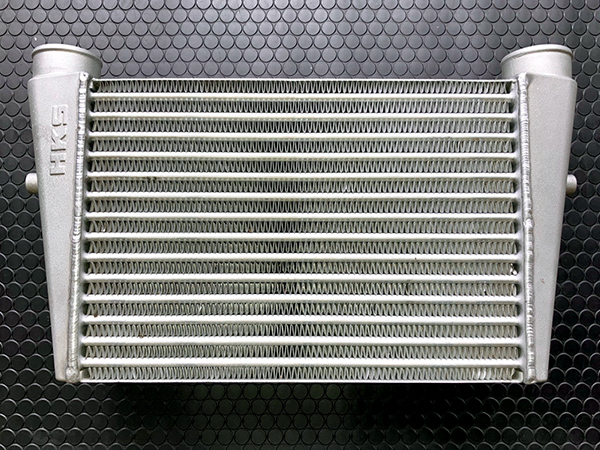

INTERCOOLER (390×270×100)





■ Features

  • The HKS GTIII-RS turbine maximizes the potential of the FA24.
  • This kit enables a maximum output of 269kW (366PS), 92kW (125PS) more than the stock, and a maximum torque of 391N・m (39.9kgf・m), 130N・m (13.3kgf・m) more than the stock, while keeping the stock clutch and injectors.
  • We developed a catalyst specifically for the FA24 turbo kit and obtained an exhaust gas test certificate.





■Performance



Test vehicle specifications
vehicle TOYOTA GR86(ZN8)
Inside the engine No changes
Turbocharger GTIII-RS
Engine Control Genuine ECU + F-CON iS
others Genuine clutch, genuine injector



Output Characteristics
Stock BOT
MAX POWER 177kW (241hp)
@6800rpm		 269kW (366hp)
@7100rpm
MAX TORQUE 261N・m (26.6kgf・m)
@4400rpm		 391N・m (39.9kgf・m)
@3300rpm
