HKS Carbon Air Cleaner Inlet Fairlady Z RZ34 70026-AN004
JPY 132,000
Please contact us for availability.
Additional information
| Manufacture | |
|---|---|
| Position | |
| Parts Category | |
| Make | |
| Model | |
| Type | |
| Material |
This intake system is made by modifying the genuine air cleaner box, adding a “Carbon Duct” and combining it with a special “Carbon Air Guide”.
【concept】
- A fresh air intake has been added to the Carbon Air Guide to direct the fresh air to the additional duct.
- The factory air box has been modified to provide an intake opening area that is approximately 1.8 times larger than the factory opening.
- The shape has been designed to reduce airflow resistance while not adversely affecting the original control.
【styling】
- Utilizing the dry carbon (3k twill weave prepreg) material, it expresses strength and sharpness.

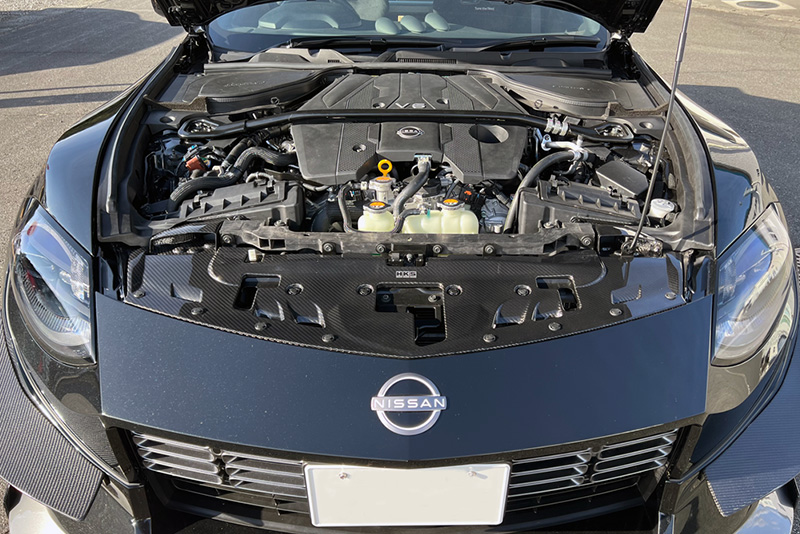

- The moment you open the hood, you’ll feel an overwhelming presence that sets it apart from the original.
- When combined with the separately sold Carbon Engine Cover and Carbon Fuse Box Cover, the result is an even more striking design.
[Product features]

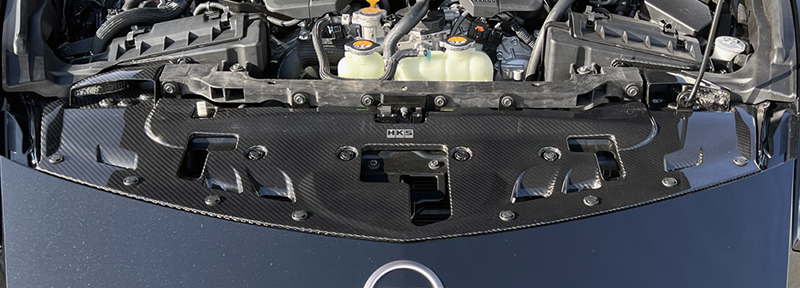

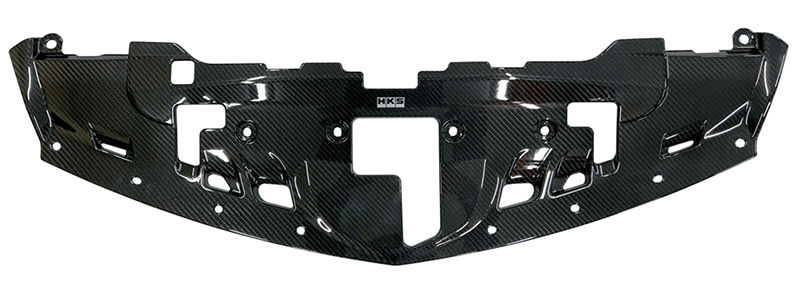

Carbon Air Guide

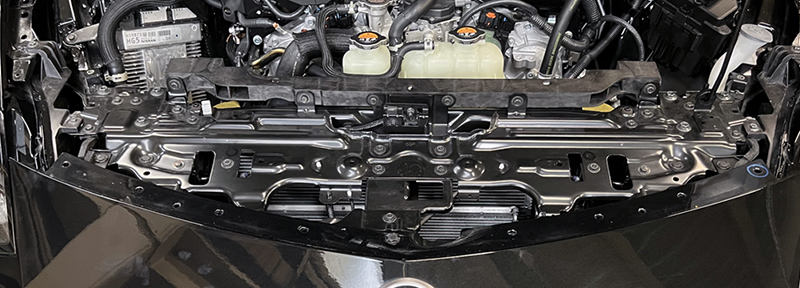

●The Carbon Air Guide will replace the original part.
●Fresh air is taken in from the opening at the front of the bumper and directed to the added Carbon Duct through the opening below the Carbon Air Guide.
●The shape of the Carbon Air Guide is designed to guide fresh air into the Carbon Duct while retaining the look and feel of the Fairlady Z.
The opening area is approximately 1.8 times larger than the original air cleaner box opening, reducing airflow resistance.
Genuine RH opening area: 4183mm 2
Additional RH opening area: 3304mm 2
Genuine LH opening area: 4283mm 2
Additional LH opening area: 3366mm 2
●The Carbon Duct is installed on the air cleaner box using trim clips.
Comparison of ventilation resistance
ACI = Air Cleaner Inlet, SAF = SUPER AIR FILTER
Output performance
- Output changes within the range of genuine control
- Change in the range of 5800 to 5900 rpm
- Standard vehicle: 312.8kW (425.4PS)
- üCarbon Air Cleaner Inlet + HKS SUPER AIR FILTER : 316.7kW (430.7PS)
- 3.9kW (5.3PS) power increase (in-house test results)
●Actual driving confirmation comparison
- You can experience the difference with and without the Carbon Air Cleaner Inlet.
Acceleration performance: 4th gear fixed 2500 rpm-rev Acceleration performance difference
Normal VS Carbon Air Cleaner Inlet + HKS SUPER AIR FILTER installed vehicle
| Measurement speed | Normal RPM |
HKS RPM |
Normal Section Time |
HKS Section Time |
Section time difference |
Normal section reach |
HKS section reach |
Difference in reach distance |
|
| km/h | rpm | rpm | sec | sec | sec | m | m | m | |
| Initial velocity | 60 | 2548 | 2558 | 0 | 0 | – | 0 | 0 | – |
| intermediate speed | 120 | 5048 | 5063 | 5.29 | 5.07 | -0.22 | 132.25 | 126.75 | -5.5 |
| terminal velocity | 167 | 6917 | 6903 | 9.99 | 9.59 | -0.4 | 314.96 | 302.35 | -12.61 |
- Compared to normal, 60km/h ⇒ 120km/h Section time -0.22 seconds Distance difference -5.5m
- Compared to normal, 120Km/h ⇒ 167Km/h Section time -0.4 seconds Distance difference -12.61m
- Compared to the standard model, the Carbon Air Cleaner Inlet + HKS SUPER AIR FILTER specification improves acceleration performance.
(Our test results)
●Reference installation time
- Carbon Air Cleaner Inlet For FAIRLADY Z RZ34 Installation time: 3~4h
