HKS Carbon Suction Kit GR86 BRZ 70026-AT011

JPY 63,800

Please contact us for availability.

SKU: 70026-AT011Categories:

Additional information

Manufacture

Position

Parts Category

Make

,

Model

,

Type

,

Combining the beauty of carbon with performance. We paid particular attention to both aesthetics and performance.









Intake pipe with beautiful surface made of 3K twill carbon prepreg
Smooth inner surface of pipe improves intake efficiency
Silicone elbow hose that is resistant to high temperatures in the engine room and prevents deformation due to negative pressure





■ Features

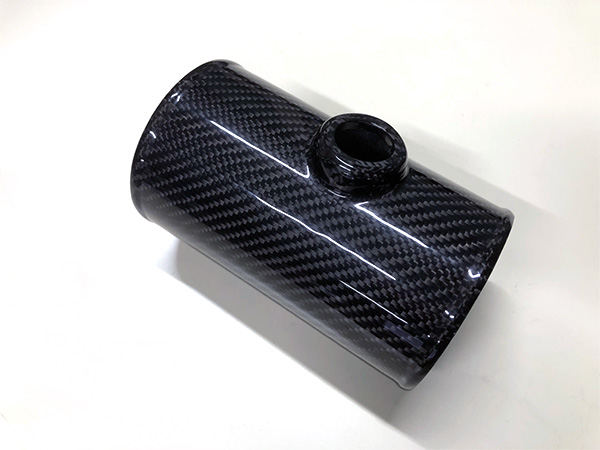

● Intake pipe

The material used is a hot press process that uses 3K* twill carbon prepreg* on the surface and UD* prepreg on the inside.

*3K: 3,000 carbon fibers
Prepreg: A sheet containing thermosetting resin in advance
UD: Unidirectional carbon fiber. UD achieves high strength by stacking multiple sheets with different lamination directions.

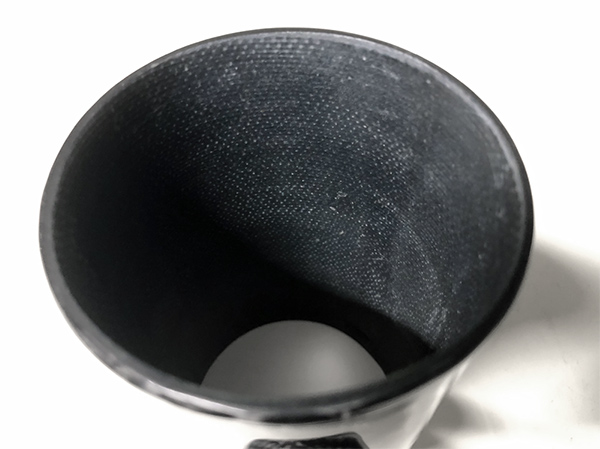

A silicone bag is used inside the pipe, and the hardening process is carried out at high pressure and high temperature. This not only gives the pipe a smooth inner surface, but also provides high strength. It allows air to flow smoothly while maintaining sufficient strength.

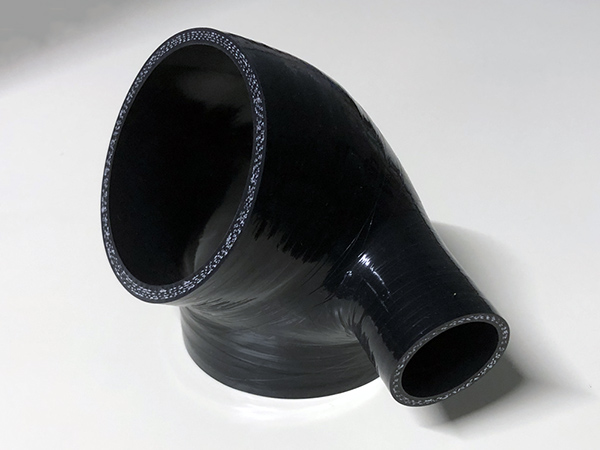

●Silicone elbow hose

Silicon is used as the material, which is resistant to high temperatures in the engine room. The smooth inner surface reduces intake resistance. The core wire is placed in the center to reduce deformation due to negative pressure and improve reliability.





■ Performance

*Our in-house testing

By changing the corrugated part of the original rubber hose to a straight carbon pipe, we have achieved a reduction in intake resistance.

Since the original chamber increases the engine’s intake pulsation effect, which has a positive effect on performance, it is designed to be able to be used in conjunction with the original chamber.



Genuine chamber
