HKS Cold Air Intake Full Kit GR86 BRZ 70026-AT012

JPY 170,500

Please contact us for availability.

SKU: 70026-AT012Categories:

Additional information

Manufacture

Position

Parts Category

Make

,

Model

,

Type

,

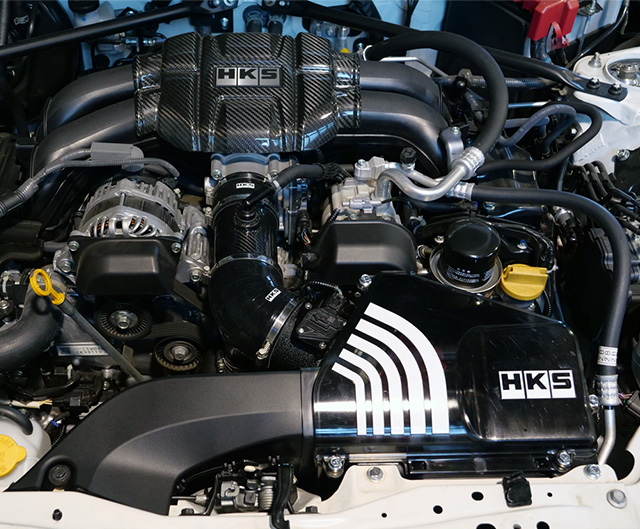

This is an intake system that includes a cold air intake, carbon suction pipe, and intake duct.









Cold Air Intake
Carbon Suction Pipe
Air intake duct





■ Features

  • The air cleaner body uses the traditional high-performance air cleaner “Super Power Flow (Φ150-80 wet two-layer)” to improve intake efficiency.
  • By placing the Super Power Flow main unit inside the box, the effects of hot air in the engine compartment are reduced, and the intake air temperature can be kept low and stable.
  • By leaving the air flow meter in its original position, it is compatible with genuine control, while the addition of a second intake duct reduces air resistance during intake.
  • The upper case of the box is clear smoke colored, which tightens up the engine room while subtly highlighting the presence of the Super Power Flow.





●Carbon suction pipe

  • The material used is a hot press process using 3K * twill carbon prepreg * on the surface and UD * prepreg on the inside .
  • A silicone bag is used inside the pipe, and the hardening process is carried out at high pressure and high temperature. This not only gives the pipe a smooth inner surface, but also provides high strength. It allows air to flow smoothly while maintaining sufficient strength.
  • The connection with the intake box is made of silicon, which is resistant to high temperatures in the engine room. The smooth inner surface reduces intake resistance. The core wire is placed in the center to reduce deformation due to negative pressure and improve reliability.

* 3K: 3,000 carbon fibers
Prepreg: A sheet containing thermosetting resin in advance
UD: Unidirectional carbon fiber. UD achieves high strength by stacking multiple sheets with different lamination directions.



●Air intake duct

  • The one-piece blow-molded structure has no internal seams, reducing intake resistance.
  • In order to reduce resistance at maximum flow rate, the narrowest part is approximately Φ87.5mm compared to approximately Φ50mm for the stock.
  • Since it has the same layout as the original, it does not absorb rainwater and can be used safely on the street.
