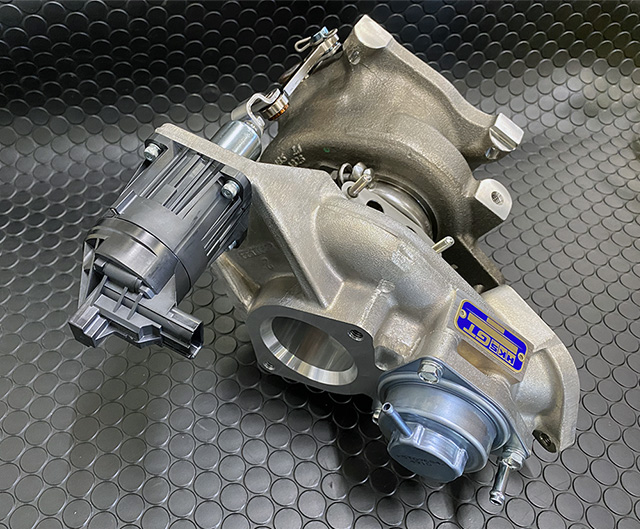

HKS GT SPORTS TURBINE KIT Civic Type R FL5 11004-AH006
HKS GT SPORTS TURBINE KIT Civic Type R FL5 11004-AH006 - Image 2
HKS GT SPORTS TURBINE KIT Civic Type R FL5 11004-AH006 - Image 3

HKS GT SPORTS TURBINE KIT Civic Type R FL5 11004-AH006

JPY 454,300

Please contact us for availability.

SKU: 11004-AH006Categories:

Additional information

Manufacture

Position

Parts Category

Make

Model

Type

Achieves high RPM performance that cannot be achieved with the stock fuel system or factory turbine







■ Features

  • Improved power output at high RPMs that cannot be achieved with stock boost
  • Designed to be used without fuel system upgrades
  • Can be installed without modification due to its genuine shape
  • Combined with a Mastery ECU and intercooler, you can enjoy high power with peace of mind.
  • An ECU control system is required to bring out the best in turbine performance.
  • Vehicle-specific packages including the GT4845 sports turbine kit and Mastery ECU PHASE3 will also be released at the same time.



POINT

  • With a standard turbine, including the boost-up specification, the boost drops at high RPMs, but with the GT4845, the boost pressure is maintained even at high RPMs.
  • When testing the FL5 at Fuji Speedway, compared to the Mastery ECU PHASE 2 boost-up model, the top speed went from 232km/h to 244km/h, an improvement of about 3 seconds in lap time, or +12km/h !

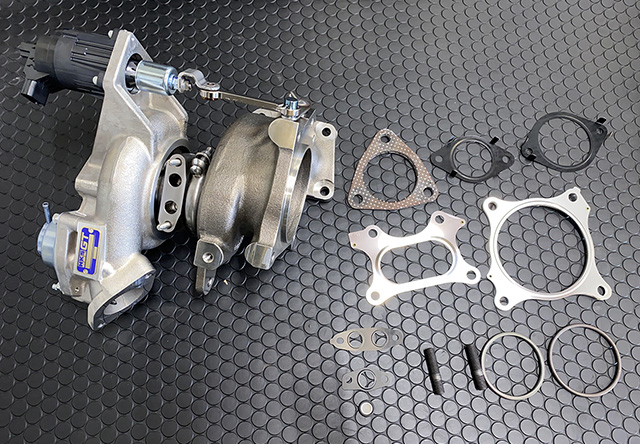

■ Components

  • Turbo ASSY / Exhaust system gasket / Intake system gasket / Water line gasket / Oil line gasket / Bolts

* Gaskets and stud bolts required for turbine replacement are included.





■Performance

  • GT4845 sports turbine kit and Mastery ECU PHASE3 specification achieves 40kw (54ps) increase over stock
  • The primary exhaust pressure is the same as the stock one, allowing efficient supercharging and improving the engine’s power output without any strain.







Test vehicle: CIVIC TYPE-R (FL5)
Turbocharger GT4845 SPORTS TURBINE KIT (11004-AH006)
ECU MasteryECU Phase3 (42019-AH007)
Intake parts Stock
Exhaust LEGAMAX Sports (31021-AH005)
catalyst METAL CATALYZER (PROTO)
cooling INTERCOOLER KIT (13001-AH007)
OIL COOLER KIT (PROTO)





Normal GT4845 STK + MasteryECU Phase 3
Maximum power 242kW (330PS) 282kW (384ps)
Maximum torque 478N・m (48.7kgf・m) 492N・m (50.2kgf・m)
Boost pressure 152kPa (1.55kgf/cm²) 181kPa (1.85kgf/cm²)
