HKS GT2 Supercharger Pro Kit GR86 BRZ 12001-AT013
HKS GT2 Supercharger Pro Kit GR86 BRZ 12001-AT013 - Image 2
HKS GT2 Supercharger Pro Kit GR86 BRZ 12001-AT013 - Image 3
HKS GT2 Supercharger Pro Kit GR86 BRZ 12001-AT013 - Image 4
HKS GT2 Supercharger Pro Kit GR86 BRZ 12001-AT013 - Image 5

HKS GT2 Supercharger Pro Kit GR86 BRZ 12001-AT013

JPY 539,000

Please contact us for availability.

SKU: 12001-AT013Categories:

Additional information

Manufacture

Position

Parts Category

,

Make

,

Model

,

Type

,

Centrifugal supercharger kit to make the most of +400cc

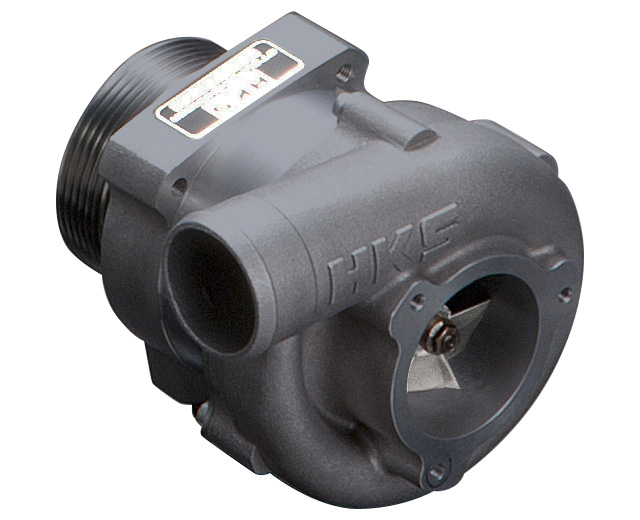

GT2 SUPERCHARGER GT2-7040L (GR86/BRZ only)

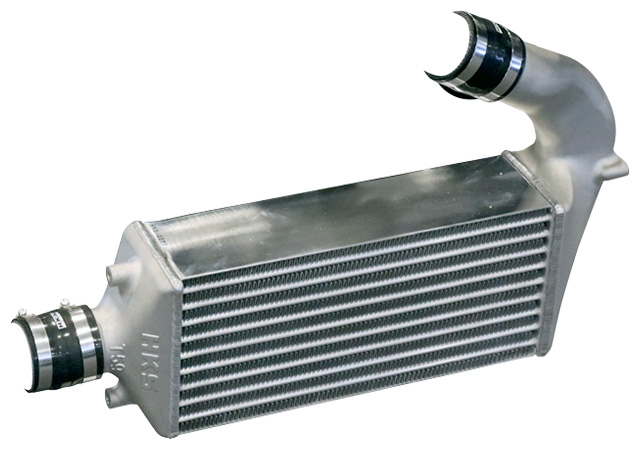

INTERCOOLER (383×178×100)





■Performance



Test vehicle specifications
vehicle TOYOTA GR86 (ZN8) Transmission E-6AT
Inside the engine No changes
Turbocharger GT2-7040L
Engine Control Genuine ECU + dedicated F-CON iS

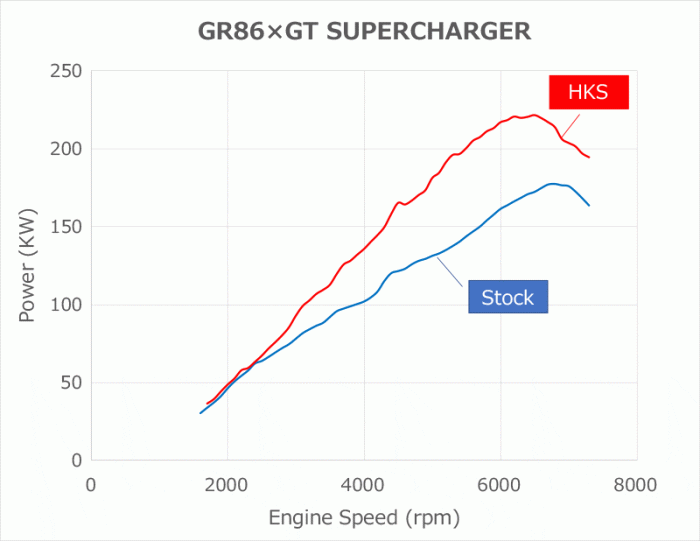

Output characteristics (our internal data)
Stock HKS GT2 S/C
Maximum power 177kW(241PS)/6700rpm 219kW(297PS)/6100rpm
Maximum torque 261N・m (26.6kg・m) / 4400rpm 351N・m (35.8kg・m) / 4500rpm





■ Features

  • Using the GT2 SUPERCHARGER GT2-7040L, this vehicle-specific kit includes mounting brackets, piping, intercooler, traction fluid-related parts, etc., and has a layout that requires minimal modification. (A separate control device is required.)
    * The engine check lamp may light up depending on the control and driving conditions.
    *We offer a sub-control system with a dedicated F-CON iS that includes management of the check lamp lighting.
    ⇒Click　here for details
  • The layout uses the genuine air cleaner, and takes into consideration quietness and intake temperature. You can enjoy the feeling of being supercharged by the GT2 SUPERCHARGER without stress, from everyday use to sports driving.

[Installation precautions]

  • We recommend using an engine oil cooler and using high temperature viscosity oil of #40 or higher.
  • Minor modifications to bumper reinforcement and radiator support are required.
  • Estimated installation time is approximately 8.5 hours.
