HKS Hi-Power SPEC-L II GR86 BRZ 32016-AF101

JPY 214,500

SKU: 32016-AF101Categories:

Available on backorder

Available on backorder

Additional information

Manufacture

Parts Category

Make

,

Model

,

Type

,

A sporty sound and significant weight reduction further improve the driving performance of the GR86



  • By using extremely thin stainless steel for the pipes and silencer, we have achieved a weight reduction comparable to that of a titanium muffler.
    (OEM 16.2kg/HKS 11.4kg)
  • The sound quality emphasizes bass, while the silent chamber pinpoints and silences the muffled sounds inside the car. We focused on “clear exhaust sound” and adopted a unique shape with perfectly equal length on both sides. We have created a product that allows you to fully enjoy the pleasant HKS sound by turning it.
  • The pipe diameter was selected to match the high-output 2.4L engine, and excellent exhaust efficiency was pursued. The reduced weight and lower exhaust pressure have resulted in a significant improvement in driving performance.









Certification number JQR40214118
Model name GR86
Model ZN8
Engine type FA24
model year 21/10 –
Muffler shape HP
(Hi-Power SPEC-L II)
Main material S304
Tail Outer Diameter 94 L&R
Intermediate Pipe Diameter 65 – 50.8 x 2 (※1)
Nearby exhaust noise normal 82 L&R
HKS 87/88
Regarding ground clearance when installed (※2) Number 120mm

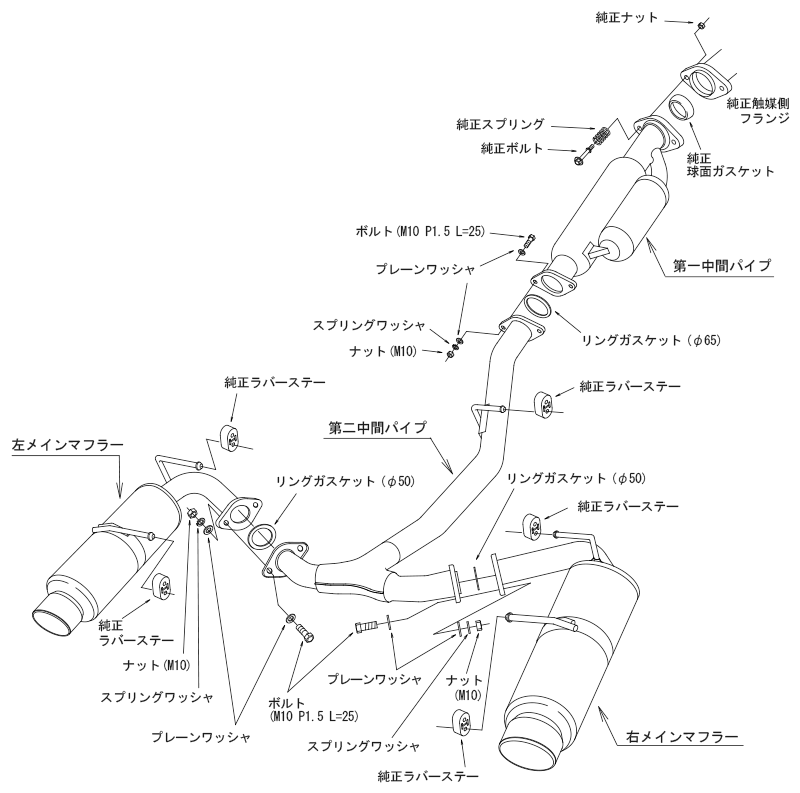

Kit target area Second intermediate pipe
remarks
HKS product weight 11.4kg
remarks

・Left and right exhaust
・Complies with the revised AD model
・2025 season CUP designated part certified
・TRA approval number TRA230322-154






TOYOTA GAZOO Racing GR86/BRZ CUP (PROFESSIONAL Series) designated parts



About HKS Muffler

*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).

*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.

Note: Hooks, brackets, and stays are subject to change without notice.

*Exhaust volume at idling
