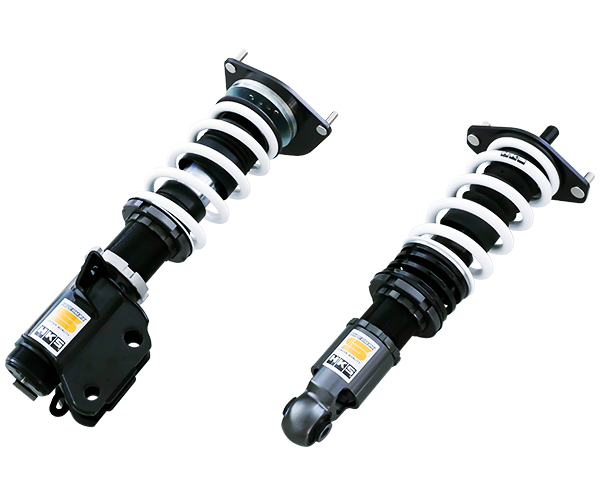

HKS Hipermax S GR86 BRZ ZN8 80300-AT027
JPY 291,500
Please contact us for availability.
It’s not just fun and comfort, it’s about creating new value through “driving comfort”
■ Fitment/Installation Information
| Engine type | FA24 |
|---|---|
| year model | 21/10 – |
| remarks | Checked on SZ 18 inch MT |
■ Specifications
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | – | – |
| Full length adjustment | 〇 | 〇 |
| Upper Mount | Piro | Rubber |
| Inverted/Upright | Handstand | Upright |
| Damper/Spring Configuration | integrated type | integrated type |
| Spring rate changed at factory | Possible | Possible |
| Damping force adjustment by wire | – | – |
| Helper spring (spring rate N/mm) |
– | Yes (19.8) |
| At time of shipment*2 | During testing | Maximum upper limit to maximum lower limit *3 | Upper limit to lower limit of drivable range*4 | ||
|---|---|---|---|---|---|
| FRONT | Vehicle height *1 | 644 | ← | 670 to 614 | 670 to 614 |
| Normal ratio | -26 | ← | 0 to -56 | 0 to -56 | |
| REAR | Vehicle height *1 | 647 | ← | 675 to 614 | 675 to 614 |
| Normal ratio | -28 | ← | 0 to -61 | 0 to -61 | |
*1. Height from the road surface to the fender arch.
*2. The vehicle height at the time of shipment is a reference measurement data based on the combination of the full kit settings made by HKS in-house. (This is our recommended vehicle height.)
*3. Adjustable range (However, please note that driving at the lower limit in this case will not comply with safety standards.
Also, even if it is within this adjustment range, depending on the vehicle height, interference with the body, arms, etc. may occur, which may cause problems with driving. Please note
that defects such as damper oil leakage caused by using the vehicle height at an extreme lowering from the vehicle height at the time of shipment are not covered by the warranty.)
*4. The range in which it is possible to drive without interference with the body, arms, etc. (However, this may not be the case depending on changes to tire and wheel sizes, etc.)
Note) Data may vary depending on individual vehicle differences and assembly conditions.
■ Kit Information
● Full kit spring
| F | R | |
|---|---|---|
| Spring rate N/mm (kgf/mm) | 49 ( 5.0 ) | 64 ( 6.5 ) |
| Free length (mm) | 170 | 170 |
| Spring Type | Straight barrel type | Straight barrel type |
| Recommended range when changing spring rate N/mm (kgf/mm) | +20 ( 2 )※ | +15(1.5), -15(1.5)※ |
● Damper specs
| F | R | |
|---|---|---|
| Damping force (extension side/compression side) N* | 392 / 387 | 432 / 495 |
| Factory setting dial position | 15 | 15 |
| Damper remaining stroke (extension side/compression side) mm | 42 / 45 | 53 / 53 |
*The damping force value is when the piston speed is 0.1 m/sec.
● Setting data
| F | R | |||||||
|---|---|---|---|---|---|---|---|---|
| At the time of shipment | During testing | Maximum driving limit * |
Lower limit of driving range * |
At the time of shipment | During testing | Maximum driving limit * |
Lower limit of driving range * |
|
| Case length (mm) |
224 | ← | 250 | 204 | 249 | ← | 271 | 235 |
| Spring set length (mm) |
160 | ← | 160 | 170 | 214 | ← | 214 | 226 |
| Winding dimensions (mm) |
45 | ← | 71 | 15 | 36 | ← | 58 | 10 |
| Lever Ratio | 1.00 | 1.26 | ||||||
*For the upper and lower driving limits, please refer to the vehicle height information column above (※3).
*5 Front rate increase is available with straight wound springs. Rear rate can be changed to 5K, 6K, 7K, or 8K. 5K rate is available with straight wound barrel springs.
■ Test vehicle information
| F | R | ||
|---|---|---|---|
| Vehicle weight (catalog value) kg | – (700) | – (560) | |
| Tire size (air pressure) kPa | 215 / 40 – 18 ( 240 ) | 215 / 40 – 18 ( 240 ) | |
| Wheel size | 7.5 JJ x 18 inset 48 | 7.5 JJ x 18 inset 48 | |
| Alignment (toe/camber) |
During testing | out 1mm / -2°00′ | in 1 mm / -2°00′ |
| Reference value | in 0 ± 2 mm / 0°00′ ± 0°45′ | in 2 ± 2 mm / -1°10′ ± 0°45′ | |
*These are our measured values.
■ Configuration diagram *Subject to change due to specification changes.
■ Points
・Rather than simply making it common with the ZN6 86 and the new BRZ that was released earlier, we set it up in the HKS style while respecting the character of each car.
・We pursued an improvement in ride comfort by taking advantage of the benefits of using large diameter pistons and a stylish look by lowering the car, without reducing the sharp handling without delay that comes from the sharp damping rise of the OEM.
・We thoroughly pursued the initial rise of the damping, and conducted numerous tests to ensure that the damping force was firmly suppressed so that it would not harden at high speeds while maintaining the sharpness of the handling range.
・We took time to select the spring rate, and tested it by repeatedly changing it by 1K each for both the front and rear, but in order to further improve the driving comfort, we adopted a spring with 0.5K increments for the rear for the first time.
・By loosening the damping dial, the ride becomes milder, but we set it up with the intention of not causing unnecessary fluffiness. In addition, the tightening margin is firmly secured to be able to handle sports driving on winding roads and circuits, so it is a suspension that can be used in a wide range.
・The rate can be changed at the time of shipment, but the front rate increase is supported by a straight wound spring. The rear rate can be changed to 5K, 6K, 7K, or 8K. 5K is supported by a straight wound barrel spring.
・We apologize for the inconvenience, but when installing on an automatic transmission vehicle, the front will be lower due to the difference in vehicle weight, so please adjust the front case length based on the test data before installing. This will optimize the vehicle height balance and improve it further.
