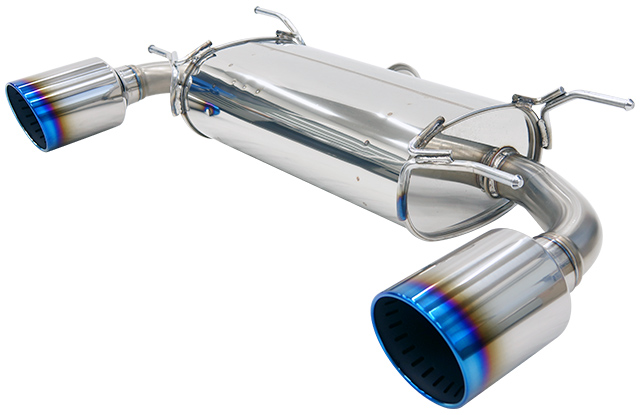

HKS LEGAMAX Premium GR86 BRZ 32018-AF018

JPY 140,800

SKU: 32018-AF018Categories:

Available on backorder

Available on backorder

Additional information

Manufacture

Parts Category

Make

,

Model

,

Type

,

A well-balanced sports muffler that is easy to use for everyday use, has a pleasant sound, and has a powerful design.



Powerful design

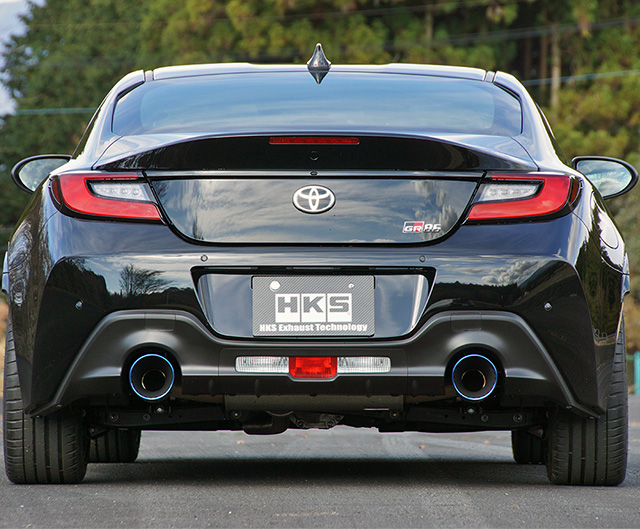

The large diameter Φ124 tailpipe matches the cutout of the genuine bumper, giving the rear view a sporty look.

A comfortable and pleasant feeling
The pipe diameter was selected with consideration given to reducing exhaust pressure, torque feeling, and response. In terms of sound, it cuts out unpleasant booming sounds while providing a pleasant sound quality at high revolution ranges. This muffler is designed to provide a pleasant ride even for everyday use.











Certification number JQR10211134
Model name GR86
Model ZN8
Engine type FA24
model year 21/10 –
Muffler shape SSR (LEGAMAX Premium)
Main material S304
Tail Outer Diameter 124 L&R
Intermediate Pipe Diameter 60.5 (※1)
Nearby exhaust noise normal 82 L&R
HKS 84 L&R
Regarding ground clearance when installed (※2) Number 122mm
Kit target area Genuine mid pipe
remarks
HKS product weight
remarks

Compatible with the revised D type





About HKS Muffler

*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).

*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.

Note: Hooks, brackets, and stays are subject to change without notice.

*Exhaust volume at idling
