HKS LEGAMAX Sports GR86 BRZ 32018-AF019

JPY 228,800

Please contact us for availability.

SKU: 32018-AF019Categories:

Additional information

Manufacture

Parts Category

Make

,

Model

,

Type

,

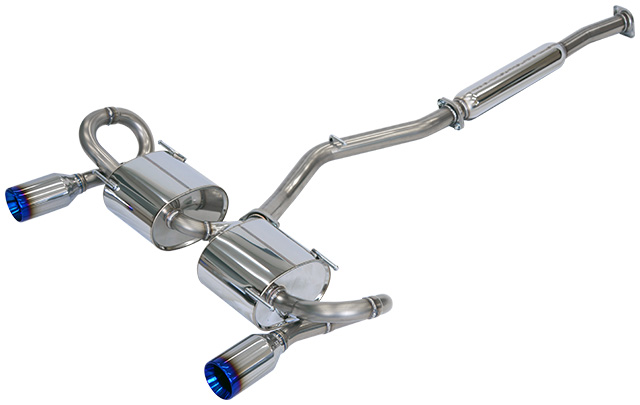

A high-performance muffler that combines both “quietness” and “low exhaust pressure”





Specially designed for the FA24.
The pipe diameter has been enlarged and optimized to match the FA24 engine, which is more powerful than the previous 86/BRZ. Excellent exhaust efficiency is achieved by adopting a completely straight structure with no restriction (φ65-φ50.8×2).

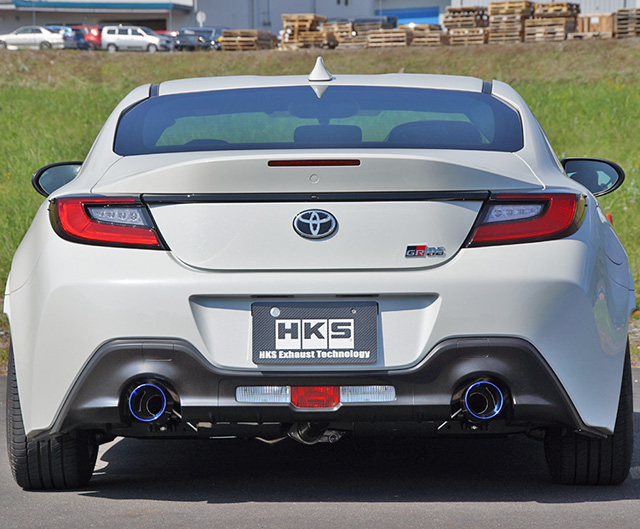

In order to realize a pleasant interior sound, the sound has been tuned to match the Active Sound Control system. The distinctive
tailpipe layout and silencer structure provide a pleasant sound that is subdued at low speeds and rises with the engine revolutions at high speeds.









Certification number JQR30223037
Model name GR86
Model ZN8
Engine type FA24
model year 21/10 –
Muffler shape RS (Titan)
(LEGAMAX Sports)
Main material S304
Tail Outer Diameter 100 L&R
Intermediate Pipe Diameter 65-50 x 2 (※1)
Nearby exhaust noise normal 83
HKS 89
Regarding ground clearance when installed (※2) Number 132mm
Kit target area Second intermediate pipe
remarks
HKS product weight
remarks

Compatible with the revised AD model
. When installing this product, it is necessary to remove the rear bumper and modify the rear bumper side cover.





About HKS Muffler

*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).

*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.

Note: Hooks, brackets, and stays are subject to change without notice.

*Exhaust volume at idling
