R TYPE INTERCOOLER & PIPING KIT for CIVIC TYPE-R FL5
■ Features
Intercooler
- The core area has been increased by 22.4% compared to the original, expanding the area exposed to the wind while driving and improving cooling performance.
- By increasing the core capacity, it can handle everything from boost up to turbo replacement.
- This layout allows installation even with genuine piping.
Piping Kit
- Compared to the stock piping, the pipe diameter is enlarged and the shape is smoother, making it possible to handle high output.
- By replacing the genuine hose with an aluminum pipe, expansion is suppressed and pressure loss caused by the expansion of the hose inside the intake pipe is eliminated.
- The bent pipe is mirror-finished with a buffed finish, and the cast pipe core features the HKS logo, which adds a touch of style to your car.

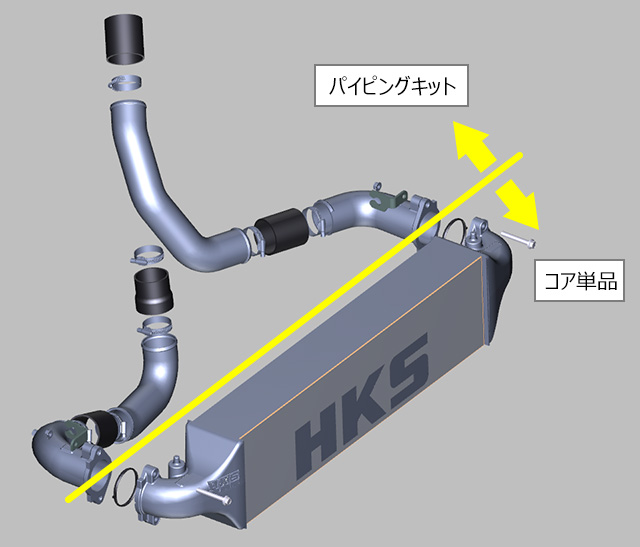

■ Kit configuration
[Core only]
- Intercooler Core
- Masking sheet for logo spray
[Full kit]
- Core only + piping kit
[Piping kit]
- Aluminum bent pipe (IN/OUT)
- Cast pipe (IN/OUT)
- Silicone Hose
- Bracket (IN/OUT)
- Hose clamp
- Dedicated bolts and nuts
■Notes
*1. To install the intercooler assembly, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. There is no modification to the reinforcement.
*2. To install the piping, it is necessary to cut the bracket on the vehicle body.
*3. For the FULL KIT, the measures (*1) and (*2) are required.
■Core size comparison
| New products | Genuine product | |
| exterior |
|
|
| specification | Core size: 695 x 178 x 100 Core specifications: 10 fins, 9 tubes Tank: Aluminum casting |
Core size: 639 x 158 x 64 Core specifications: 11 fins, 10 tubes Tank: Resin |
| performance | Output: 245kW (333PS/6500rpm) Torque: 449.5Nm (45.9kgm)/3260rpm Cooling performance: I/C outlet 30.3℃ (7000rpm) Cooling efficiency: 88% (7000rpm) |
Output: 243kW (331PS/6420rpm) Torque: 445.8Nm (45.5kgm)/3360rpm Cooling performance: I/C outlet 56.0℃ (7000rpm) Cooling efficiency: 67% (7000rpm) |
■Performance comparison
(Internal data)
■Piping comparison
| New products | Genuine product | |
| exterior |  |
 |
| specification | in No.1: Aluminum bent pipe (inner diameter φ60) in No.2: Aluminum casting (bracket separate) out No.1: Aluminum casting (bracket separate) out No.2: Aluminum bent pipe |
In No.1: Rubber hose (inner diameter φ55) In No.2: Aluminum casting (with bracket) Out No.1: Resin (with bracket) Out No.2: Rubber hose |

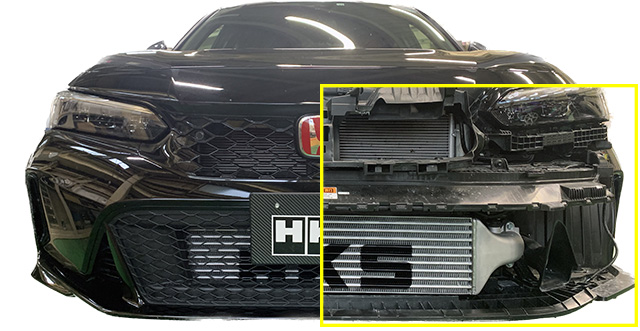

■Kit installation image Buffed pipe section
