Laile Beatrush Front frame top bar – GR86 GT86 BRZ

JPY 30,800

Please contact us for availability.

SKU: S86400PB-FTCategories: Tags: , , , , , , , , ,

Additional information

Manufacture

Position

Parts Category

Make

,

Model

, ,

Type

, , ,

Material

,

Front frame top bar

 TOYOTA GR 86 [ ZN8 ] 21/10~
 TOYOTA 86 [ ZN6 ] 12/02~20/08
 SUBARU BRZ [ ZD8 ] 21/08~
 SUBARU BRZ [ ZC6 ] 12/02~20/08

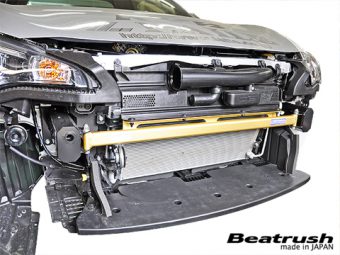

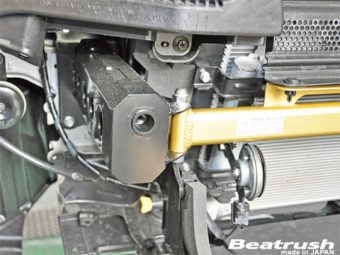

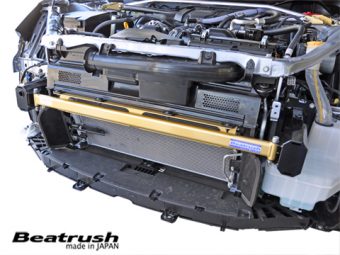

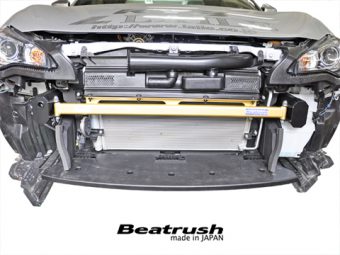

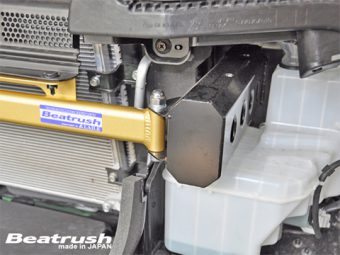

The platform is the basis of the vehicle’s structure. The main frame, which is the basis of the chassis, is simply connected at the front and rear ends of two frames by bumper housings and thin steel plates. This means that the vehicle’s torsional rigidity is weak, and when weight is placed on one wheel, such as when entering a corner, the body will twist and the tire and suspension will not function properly. The front frame top bar is installed in place of the bumper housing at the end of the frame, suppressing frame movement and improving torsional rigidity. It also reduces the weight of the overhang.

【specification】

shaft
Aluminum oval pipe, gold painted finish
bracket
Steel, cathodic finish
Weight
Approx. 4.6 kg

[Installation]

  • Bolt-on installation without any modification
  • Installation time: Approx. 60 minutes
