Oil pan baffle plate for FA24
Oil Lubrication
TOYOTA GAZOO Racing GR86/BRZ Cup 2022 certified parts [TRA approval number] TRA220616-136
Composite baffle stabilizes the oil level!
When the vehicle changes position or experiences inertial force due to acceleration, deceleration, or cornering during sports driving, the oil in the oil pan can become uneven or jump up, which can cause the engine oil film to break.

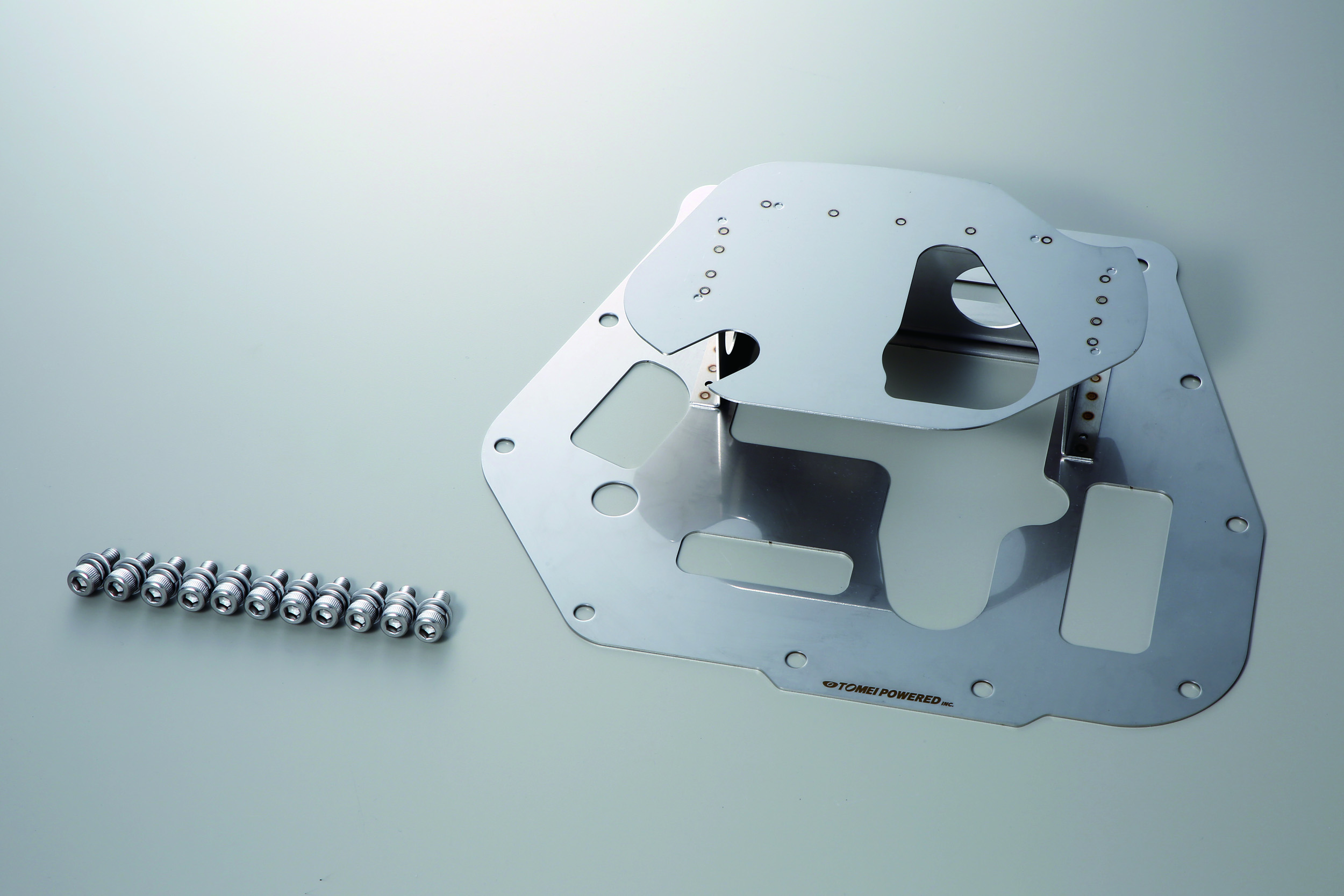

The TOMEI baffle plate is a composite baffle plate designed for sports driving that prevents oil suction from being interrupted under all driving conditions.
FEATURE / SPEC
| Material | Plate Thickness | weight |
|---|---|---|
| SUS304 | t=1.2mm | 580g |

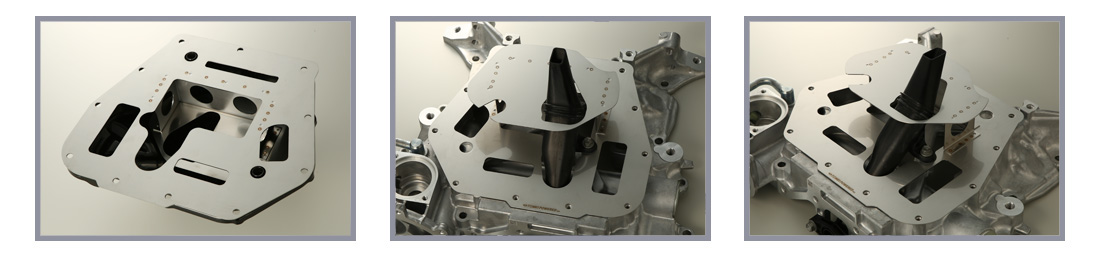

■ Upper plate prevents scattering and tilting

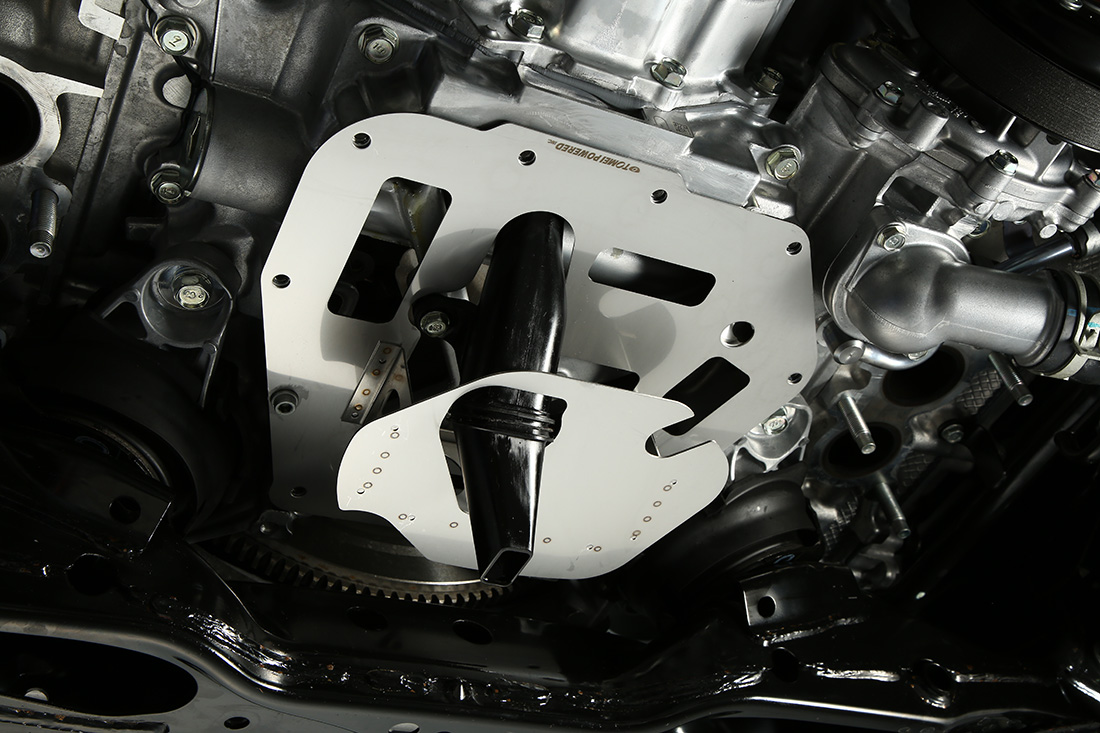

The upper plate prevents oil from jumping up and the inclination of the oil surface due to changes in the vehicle’s position, preventing oil bias and oil cavitation, ensuring a stable oil supply. [STD (without baffle)] Oil moves along the walls of the oil pan toward the block, reducing the amount of oil in the oil pan and causing a drop in oil pressure. [When TOMEI baffle plate is installed] By installing a plate between the oil pan and the block, the oil does not move toward the block, and the oil is kept in the oil pan, leading to a stable oil supply.
■ Lower plate prevents oil movement at the bottom
[STD (without baffle)]
Oil moves freely in all directions, making it easier for the strainer to suck in air.
TOYOTA GAZOO Racing GR86/BRZ Cup 2025 certified parts
This product is an approved part for preventing engine oil uneven distribution in the Clubman and Professional Series of the TOYOTA GAZOO Racing GR86/BRZ Cup 2025.
[TRA Approval Number] TRA220616-136
