Ti SPORTS Titanium Muffler GR86(ZN8)/BRZ(ZD8)

Exhaust Related

The only muffler that meets safety standards and is compatible with MT/AT for the GR86 and BRZ

The Ti SPORTS muffler series is a muffler that meets safety standards and is environmentally friendly, with reduced noise for city driving, and is based on the development track record of competition-only mufflers, with exhaust efficiency and weight reduction technology optimized for sports driving on the circuit.
Experience the smooth, pleasant full titanium sound in your car.

FEATURE / SPEC

Kit configuration

Main Pipe A Main Pipe B Main Pipe C M8 Bolt M8 Nut M8 Plate Washer Clamp Plate Joint Band Clamp Aluminum tape Mounting Stay M6 bolt

The powerful, clear exhaust sound that only a full titanium muffler can produce. The sound volume is environmentally friendly, and has cleared strict exhaust sound volume regulations and obtained JQR certification.

The inner diameter of the sub-silencer and main silencer is designed without any narrowing, pursuing optimal exhaust efficiency for sports driving.
With a straight structure, single outlet, and the lightweight design unique to titanium mufflers, this muffler meets safety standards and achieves ideal performance.

	Ti SPORTS		STD (M/T)
Material	Titanium		steel
Main Pipe Diameter	Φ70		φ53-φ60-φ60W
Sub silencer diameter	Deformity		Deformity
Main silencer diameter	Φ130		Oval
Main Pipe Thickness	1mm		1.5mm
Outlet diameter	Φ112		φ110 double tube W
Flange Thickness	Press flange t=2.0mm		2.0mm
Nearby exhaust noise	MT	AT	85.4dB
	95dB	94dB
Acceleration noise	82dB	82dB	–
weight	8.7kg		16.3kg

DATA

Meets JQR certification standards

The embossed TOMEI logo and the JQR certification plate, which is proof of compliance with the pre-certification system, are placed on the underside of the silencer to visually appeal to the quality of the Ti SPORTS muffler. In addition, the use of a resonator suppresses the volume without compromising the high-quality sound and exhaust efficiency, making it a safety standard-compliant type that is safe not only for sports driving but also for use on public roads.

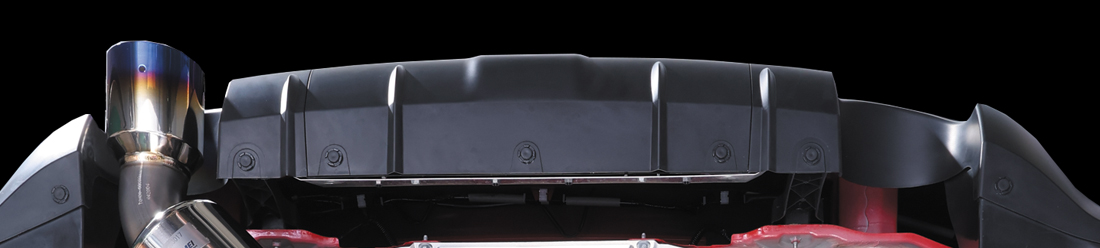

style

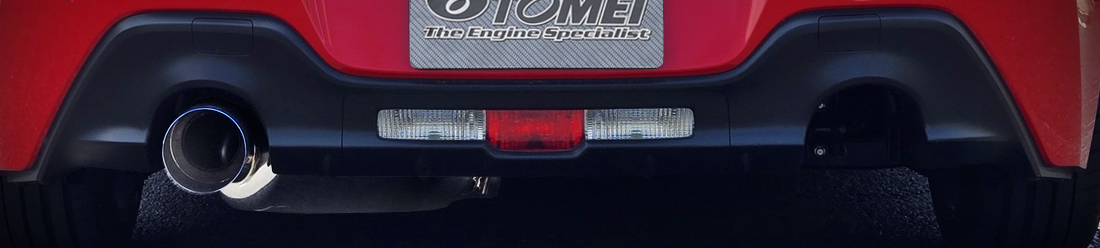

Large diameter tail end It uses a bullet-type main silencer. The large-diameter tail end is buffed and finished in a vivid titanium blue color, and features the TOMEI logo.
